Hydraulic Pressure Gauges
A pressure gauge is a device used to measure and visualize fluid intensity in a system. Pressure gauges are indispensable devices during the setup of a system and its operation. They ensure the system is within the correct operating conditions and that there are no leaks.

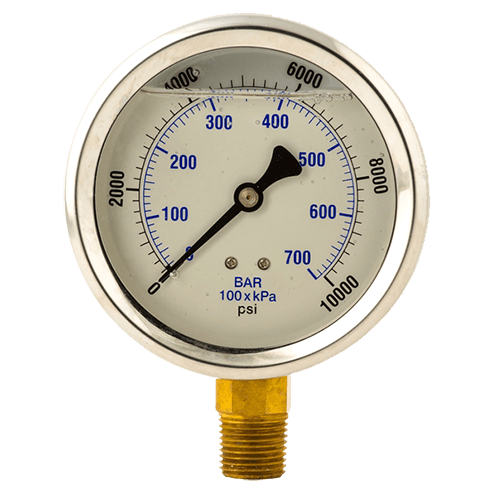

Hydraulic Pressure Gauge GW2512
Face Diameter: 63 mm
Pressure Range, PSI: 0-10000
Major Graduation, PSI: 2000
Minor Graduation, PSI: 200
Pressure Range, Bar: 0-700
Major Graduation, Bar: 100
Minor Graduation, Bar: 10
Thread size: ½"-18NPTF

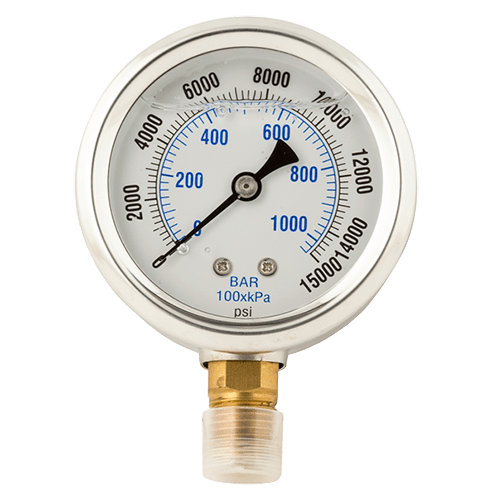

Hydraulic Pressure Gauge GW2514
Face Diameter: 63 mm
Pressure Range, PSI: 0-15000
Major Graduation, PSI: 2000
Minor Graduation, PSI: 200
Pressure Range, Bar: 0-1000
Major Graduation, Bar: 200
Minor Graduation, Bar: 20
Thread size: ¼"-18NPTF
Hydraulic Pressure Gauge GW4012
Face Diameter: 100 mm
Pressure Range, PSI: 0-10000
Major Graduation, PSI: 2000
Minor Graduation, PSI: 200
Pressure Range, Bar: 0-700
Major Graduation, Bar: 100
Minor Graduation, Bar: 10
Thread size: ½"-18NPTF
Hydraulic Pressure Gauge GW4014
Face Diameter: 100 mm
Pressure Range, PSI: 0-15000
Major Graduation, PSI: 2000
Minor Graduation, PSI: 200
Pressure Range, Bar: 0-1000
Major Graduation, Bar: 200
Minor Graduation, Bar: 20
Thread size: ¼"-18NPTF

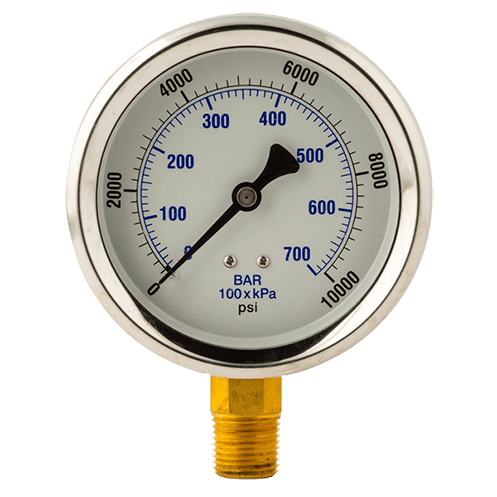

Hydraulic Pressure Gauge GD2512
Face Diameter: 63 mm
Pressure Range, PSI: 0-10000
Major Graduation, PSI: 2000
Minor Graduation, PSI: 200
Pressure Range, Bar: 0-700
Major Graduation, Bar: 100
Minor Graduation, Bar: 10
Thread size: ½"-18NPTF

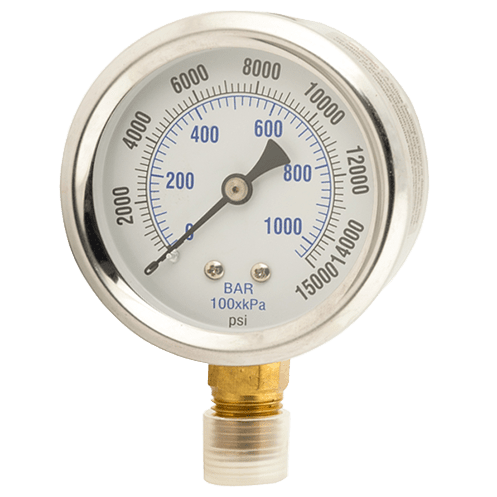

Hydraulic Pressure Gauge GD2514
Face Diameter: 63 mm
Pressure Range, PSI: 0-15000
Major Graduation, PSI: 2000
Minor Graduation, PSI: 200
Pressure Range, Bar: 0-1000
Major Graduation, Bar: 200
Minor Graduation, Bar: 20
Thread size: ¼"-18NPTF
Hydraulic Pressure Gauge GD4012
Face Diameter: 100 mm
Pressure Range, PSI: 0-10000
Major Graduation, PSI: 2000
Minor Graduation, PSI: 200
Pressure Range, Bar: 0-700
Major Graduation, Bar: 100
Minor Graduation, Bar: 10
Thread size: ½"-18NPTF
Hydraulic Pressure Gauge GD4014
Face Diameter: 100 mm
Pressure Range, PSI: 0-15000
Major Graduation, PSI: 2000
Minor Graduation, PSI: 200
Pressure Range, Bar: 0-1000
Major Graduation, Bar: 200
Minor Graduation, Bar: 20
Thread size: ¼"-18NPTF

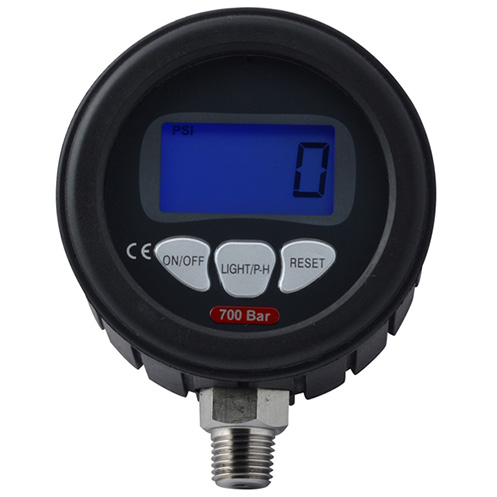

Digital Hydraulic Pressure Gauge GE2514
Face Diameter: 63 mm
Back-lit display, Zero reset
Displays in multiple units: PSI, Bar, kg/cm², Mpa
High precision gauge, accuracy, % of scale: ±0.5
Pressure Range, PSI: 0-10000
Pressure Range, Bar: 0-700
Working temp: -10°C ~ 60°C
Thread size: ¼"-18NPTF
Hydraulic pressure gauges are designed for quick and easy installation. Ideal for use in many applications, especially for high cycle and harsh environments.
